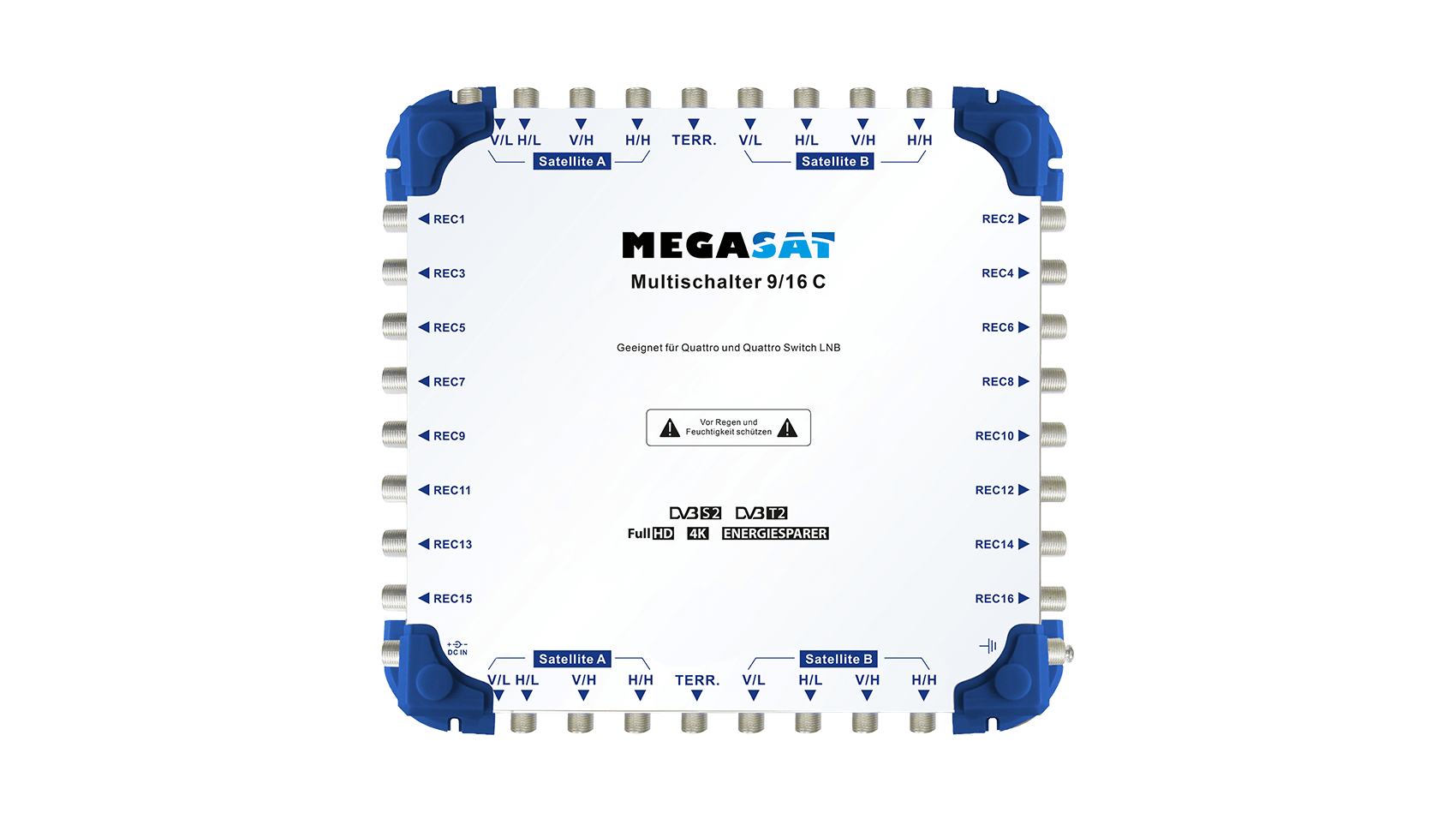

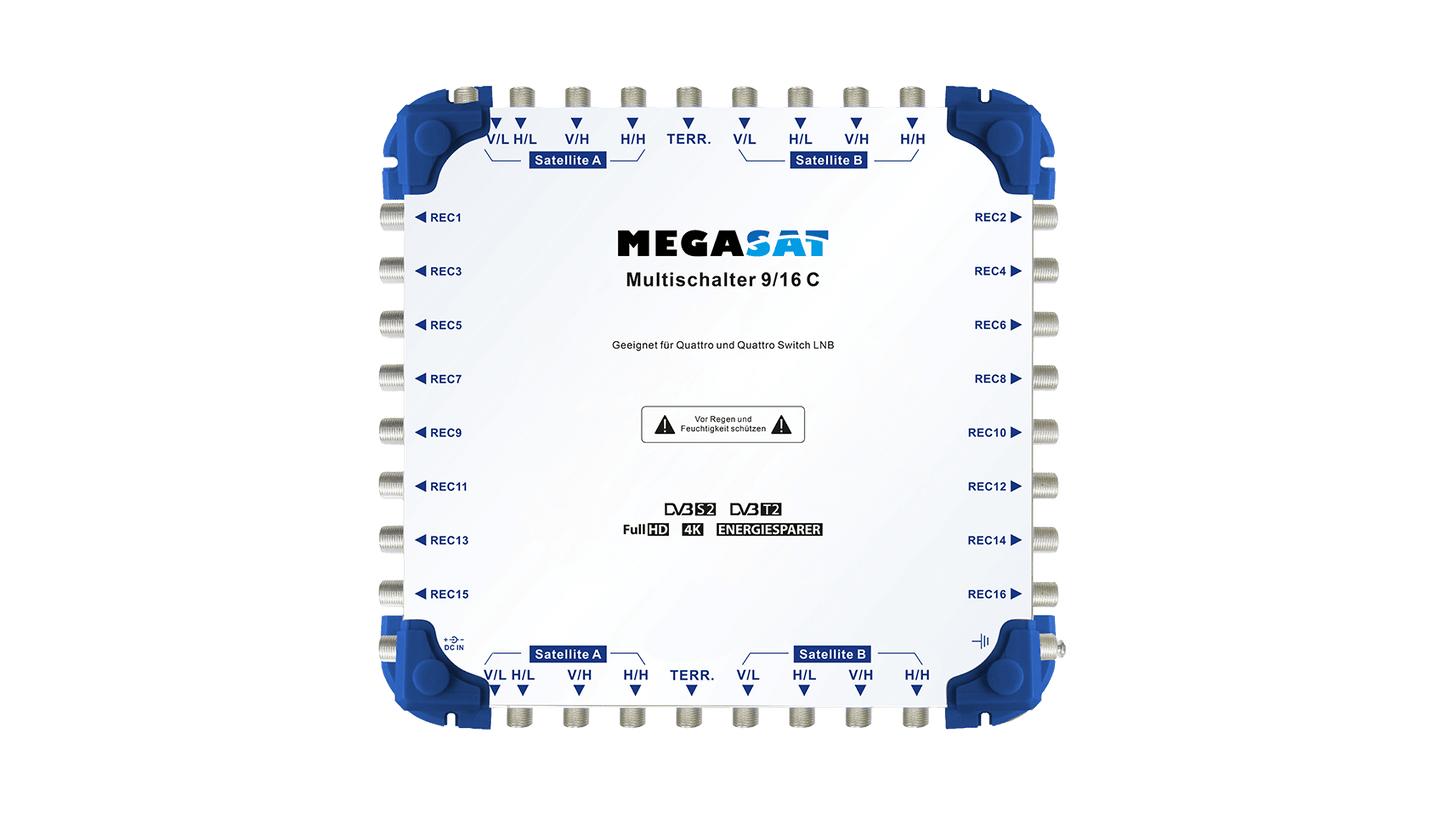

16 q8 sat multiswitch of 9 in 16 out #1119

The Q8SAT 9x16 Multiswitch is a professional-grade satellite distribution device designed to efficiently route signals from multiple satellite sources to up to 16 receivers. Ideal for medium to large-scale installations such as multi-dwelling units, hotels, and commercial buildings, this multiswitch ensures reliable signal distribution across various setups.

📡 Key Features

• Input Configuration: Supports 9 inputs—8 for satellite signals (covering four polarities from two satellite positions) and 1 for terrestrial signals, allowing comprehensive signal distribution.

• Output Capability: Equipped with 16 user outputs, enabling connection to multiple receivers simultaneously.

• Flexible Topology: Can be configured in both star (terminal) and cascade modes, offering versatility in system design.

• Signal Amplification: Features built-in amplification to compensate for signal loss over long cable runs, ensuring consistent signal quality.

• Powering Options: Offers multiple powering configurations, including mains and line-powered options, to suit various installation requirements.

• Compact Design: Designed to fit into confined spaces, facilitating easy installation in diverse environments.
