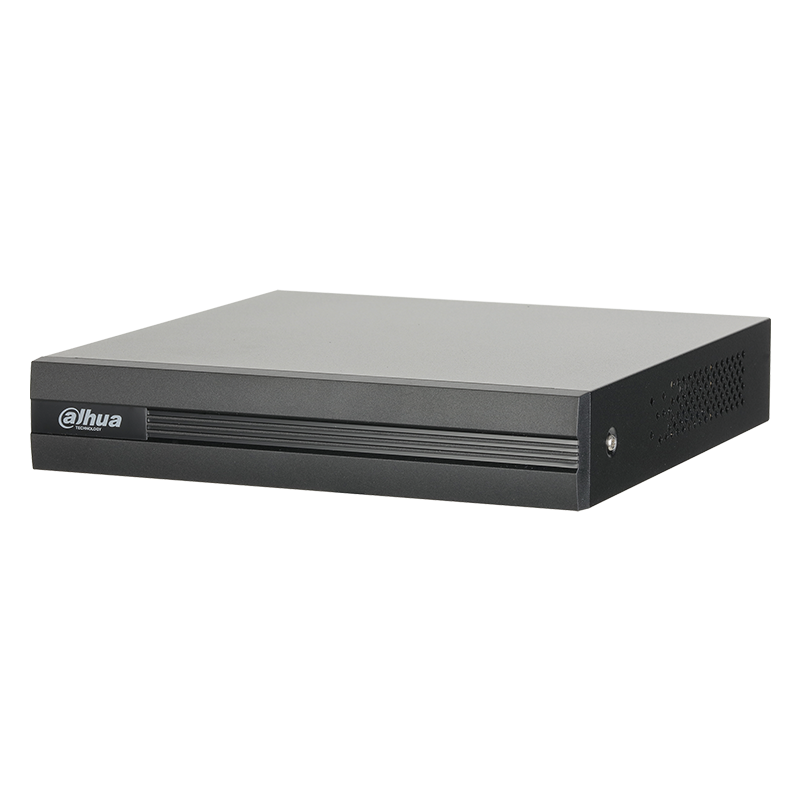

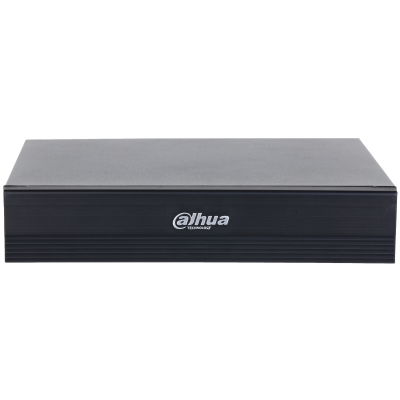

4Channel 2+5MP 1U Digital Video Recorder - XVR1B04H-I #12

The Dahua DH-XVR1B04H-I is a 4-channel Penta-brid digital video recorder (DVR) from the Cooper series, designed to support multiple video formats, including HDCVI, AHD, TVI, CVBS, and IP inputs. It offers flexibility for various surveillance applications.

🔍 Key Features

• Multi-Format Compatibility: Supports HDCVI, AHD, TVI, CVBS, and IP video inputs, offering flexibility in camera selection.

• High-Resolution Recording: Records up to 5MP resolution on analog channels and up to 6MP on IP channels, providing clear and detailed video footage.

• AI-Powered Analytics:

  • SMD Plus: 4-channel Smart Motion Detection Plus for accurate human and vehicle detection, reducing false alarms.

  • AI Coding: Full-channel AI-Coding to save on storage and bandwidth while maintaining the details of targets in videos.

• Efficient Video Compression: Utilizes H.265+/H.265 dual-stream video compression, optimizing storage and bandwidth usage.

• Storage Capacity: Equipped with 1 SATA port, supporting up to 16TB of storage for extensive video recordings.

• Video Outputs: Includes HDMI and VGA outputs, supporting resolutions up to 1080p for high-quality video display.

• Audio Support: Features 1-channel RCA audio input and output, with two-way talk functionality.

• Network Connectivity: 1 RJ-45 port (10/100 Mbps Ethernet) for network access and remote viewing.

• Compact Design: Dimensions of 198 mm × 203 mm × 42 mm (7.80" × 8.00" × 1.65") and lightweight at 0.55 kg (1.21 lb), suitable for desktop installation.
