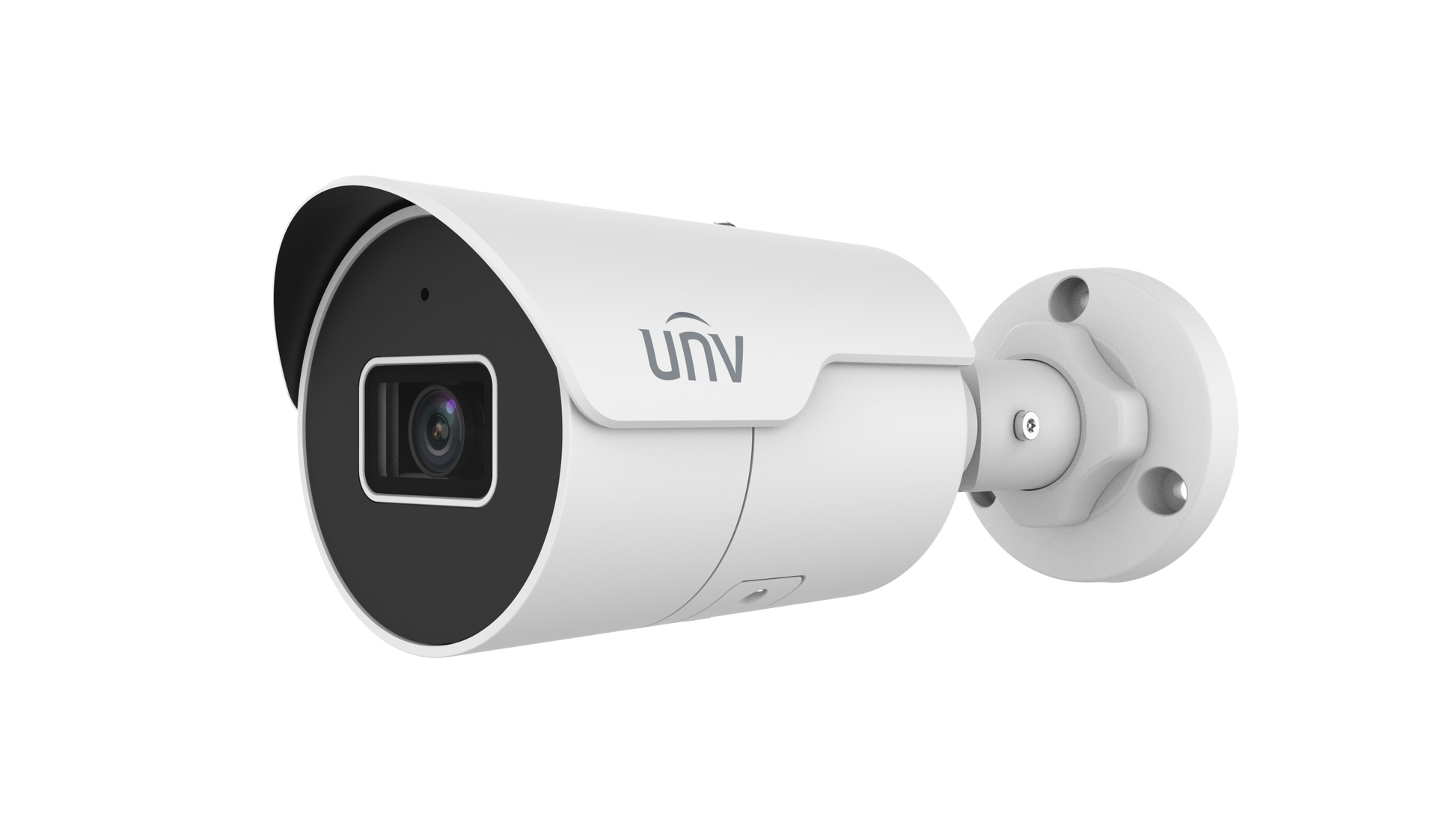

5MP HD IR Bullet Network Camera UNV-FIXED MIC #1490
5MP HD IR Bullet Network Camera UNV-FIXED MIC #1490
Image & Optics
-
Resolution: Up to 5 MP (2880 × 1620) at 25 fps; supports 4 MP, 3 MP, and 1080p resolutions at varying frame rates
-
Sensor: 1/2.7" progressive scan CMOS
-
Lens: Fixed 2.8 mm focal length, aperture F1.6; offers a 110° horizontal field of view
-
Camera Orientation: 3-axis design (pan/tilt/rotate) for flexible mounting and precise aiming
Low Light & Illumination
-
Minimum Illumination: Excellent low-light sensitivity down to 0.003 Lux (F1.6, AGC ON), with full IR performance at 0 Lux
-
Smart IR: Infrared night vision effective up to 50 meters (≈ 164 ft)
Image Quality Enhancements
-
True WDR (120 dB): Ensures clarity in scenes with wide contrast range
-
Enhancements: Includes 2D/3D DNR, BLC/HLC, ROI, privacy masks, ONVIF Corridor mode (9:16) for vertical layouts, OSD overlays
Smart Features & Analytics
-
UMD (Ultra Motion Detection): AI-based movement detection that reduces false alerts
-
Basic VCA: Supports line crossing and intrusion detection focused on human/vehicle movement
Audio & Storage
-
Audio: Built-in microphone for audio capture
-
Storage: MicroSD card slot supporting up to 512 GB for local recording
Summary Table: IPC2125LE-ADF28KM-H Features
| Feature | Specification |
|---|---|
| Resolution | 5 MP (2880 × 1620) at up to 25 fps |
| Sensor | 1/2.7″ progressive-scan CMOS |
| Lens | Fixed 2.8 mm, F1.6 — 110° horizontal FOV |
| Low-Light | 0.003 Lux; 0 Lux with IR |
| IR Range | Up to 50 m (164 ft) |
| WDR | 120 dB true WDR |
| Enhancements | 2D/3D DNR, BLC/HLC, ROI, Corridor, Privacy Mask, OSD |
| Smart Analytics | UMD, line crossing, intrusion detection |
| Audio | Built-in mic |
| Storage | MicroSD slot (max 512 GB) |
| Power & Durability | PoE & 12 V DC; IP67 rating |
| Detection Ranges | Detect: 63 m, Observe: 25 m, Recognize: 12.6 m, Identify: 6.3 m |
