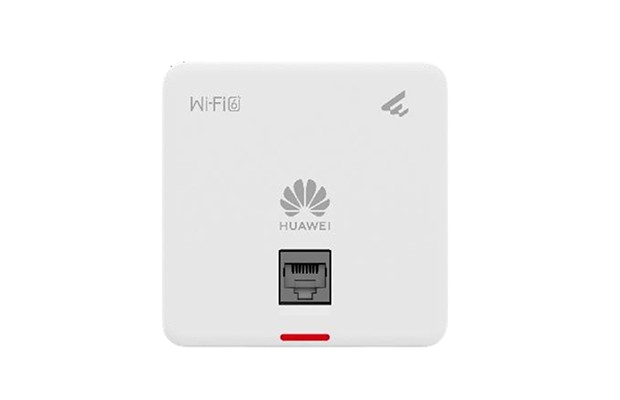

AP160 Huawei eKitEngine Access Point #1299

The Huawei eKitEngine AP160 is a compact, high-performance Wi-Fi 6 (802.11ax) wall plate access point designed for seamless indoor coverage in environments such as enterprise offices, commercial spaces, and budget hotels.

🔧 Key Features

• Dual-Band Wi-Fi 6 (802.11ax): Operates on 2.4 GHz (2×2 MIMO) and 5 GHz (2×2 MIMO) frequencies, delivering a combined maximum device rate of 1.775 Gbps.

• Ultra-Thin Design: Features an 8 mm slim profile with an international 86×86 mm form factor, enabling easy installation on exposed or embedded junction boxes with a minimum depth of 35 mm.

• Smart Antenna Technology: Equipped with built-in smart antennas that automatically adjust coverage direction and signal strength based on intelligent algorithms, ensuring stable and accurate coverage as devices move.

• Multiple Operating Modes: Supports Fit, Fat, and cloud management modes, offering flexibility in deployment and operation.

• Power over Ethernet (PoE): Powered via IEEE 802.3af standard PoE, simplifying installation by reducing the need for separate power cables.

• Optimal Coverage Range: Designed for an optimal coverage range of up to 10 meters, suitable for small to medium-sized rooms.
