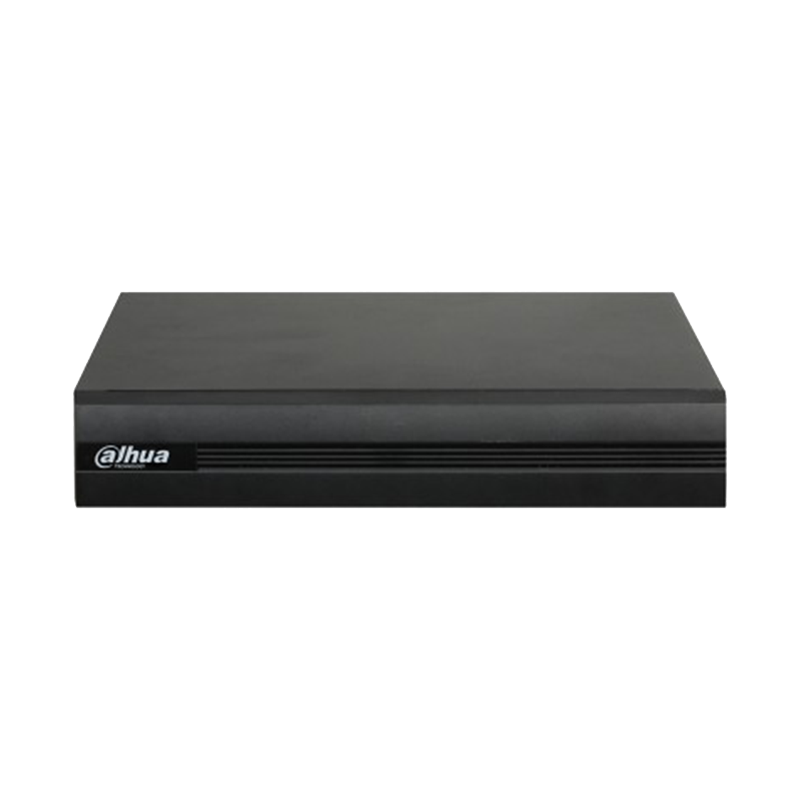

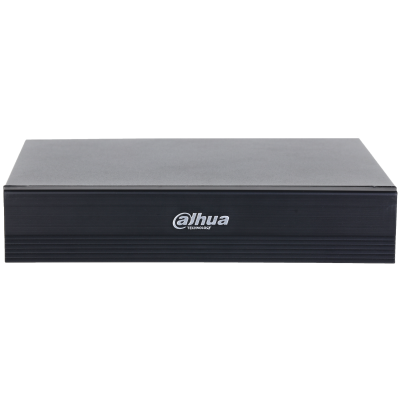

The Dahua DH-XVR5116HS-I3 is a 16-channel Penta-brid digital video recorder (DVR) from the WizSense series, designed to support multiple video formats, including HDCVI, AHD, TVI, CVBS, and IP inputs. It offers flexibility for various surveillance applications.
š Key Features
-
Multi-Format Compatibility: Supports HDCVI, AHD, TVI, CVBS, and IP video inputs, offering flexibility in camera selection.
-
High-Resolution Recording: Records up to 5MP resolution on analog channels and up to 6MP on IP channels, providing clear and detailed video footage.
-
AI-Powered Analytics:
-
SMD Plus: 16-channel Smart Motion Detection Plus for accurate human and vehicle detection, reducing false alarms.
-
Perimeter Protection: 4-channel perimeter protection supporting tripwire and intrusion detection.
-
Face Recognition: 2-channel face recognition with a database capacity of up to 10,000 images.
-
QuickPick 2.0: 2-channel QuickPick for efficient target retrieval.
-
-
Efficient Video Compression: Utilizes H.265+/H.265 dual-stream video compression, optimizing storage and bandwidth usage.
-
Storage Capacity: Equipped with a single SATA port, supporting up to 16TB of storage for extensive video recordings.
-
Video Outputs: Includes HDMI and VGA outputs, supporting resolutions up to 4K and 1080p respectively, for high-quality video display.
-
Audio Support: Features 1-channel RCA audio input and output, with two-way talk functionality.
-
Network Connectivity: 1 RJ-45 port (10/100 Mbps Ethernet) for network access and remote viewing.
-
Compact Design: Dimensions of 260.0 mm Ć 237.9 mm Ć 47.6 mm (10.24" Ć 9.37" Ć 1.87") and lightweight at 1.17 kg (2.58 lb), suitable for desktop installation.
