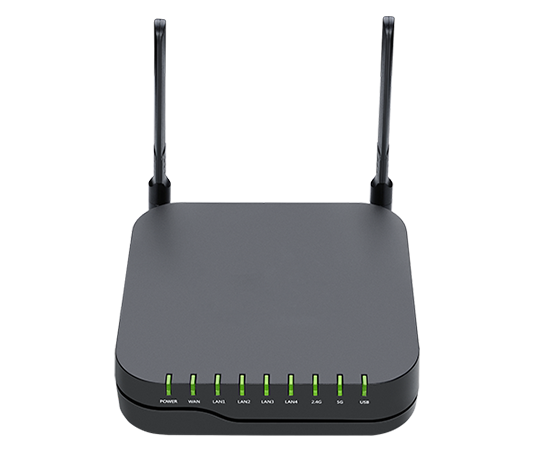

Flyingvoice FPX9102H

Here’s a comprehensive overview of the Flyingvoice FPX9102H, a versatile 2 FXO VoIP router with built‑in wireless and PBX features:

 Key Specs & Features

• VoIP & Telephony

  • 2 FXO ports for PSTN trunk integration, supporting 2 simultaneous external calls and up to ~25 concurrent calls with Asterisk features

  • Built-in mini PBX (Asterisk/OpenWRT): supports up to 50 extensions, IVR, conferencing, voicemail (up to 3,000 min), parking, paging, queues

• Networking & Wireless

  • 1 Gigabit WAN + 4 Gigabit LAN ports for wired connectivity .

  • Dual-band 802.11a/b/g/n/ac Wi‑Fi: up to 867 Mbps (5 GHz) + 300 Mbps (2.4 GHz), with up to two SSIDs per band .

  • USB 2.0 port can serve as TFTP or Samba file storage

• Performance & Management

  • Dual-core MIPS1004k CPU at 880 MHz, 256 MB DDR3 RAM, 128 MB flash

  • Full management via web UI, TR‑069, SNMP; supports HNAT, VLAN/QoS, VPN (PPTP/L2TP/OpenVPN)

• Voice Codecs & Quality

  • G.711 (A/u), G.729A/B, echo cancellation, VAD/CNG, jitter buffer, fax via T.30 (G.711)

• Hardware & Power

  • Dimensions: ~153×153×35 mm; weight: ~330 g .

  • Power: 12 V⎓ @ 2 A via universal AC adapter; operating temp: -5 °C to 45 °C .
