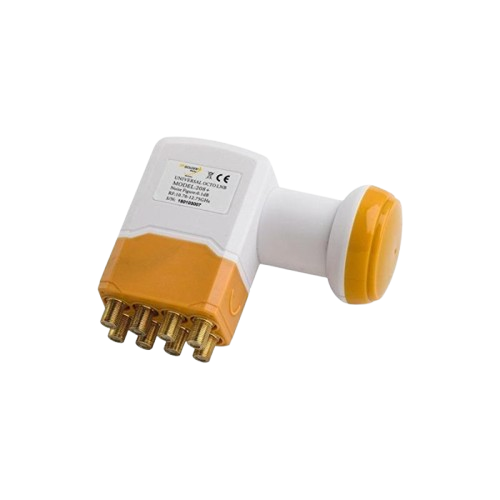

Golden Media Universal Octo 208+ LNB (GERMANY)

Here’s a deep dive into the Golden Media Universal Octo 208+ LNB (GM208+), widely used in Germany and Europe:

🔧 Core Specifications

• LNB Type: Universal Octo LNB – integrates an internal multiswitch for 8 independent outputs, each directly feeding a receiver .

• Noise Figure: Extremely low at 0.1 dB (typ.), leading to superior signal clarity

• Gain: 55–65 dB, offering high amplification to support multiple receivers

• Frequency Range:

  • Input: 10.70–12.75 GHz

  • Output: 950–1950 MHz (low band); 1100–2150 MHz (high)

• LO Frequencies: 9.75 GHz / 10.6 GHz (classic universal LNB setup)

• Power Consumption: Max ~200 mA total—powered via receivers

• Build: 40 mm feed flange, weather-resistant, designed for –30 °C to +60 °C environments, with a telescopic weather cover .

• Connectors: 8 gold-plated F-type outputs included with 8 connectors

✅ Performance & Usage

• 4K/HD Ready: Advertised for Full HD, 3D, and Ultra HD usage—ideal for modern setups

• High Gain, Low Noise: A standout choice for larger systems, strong reception, and long cable runs

• All‑in‑One Multiswitch: Simplifies installation—no external switch needed for up to 8 tuners
