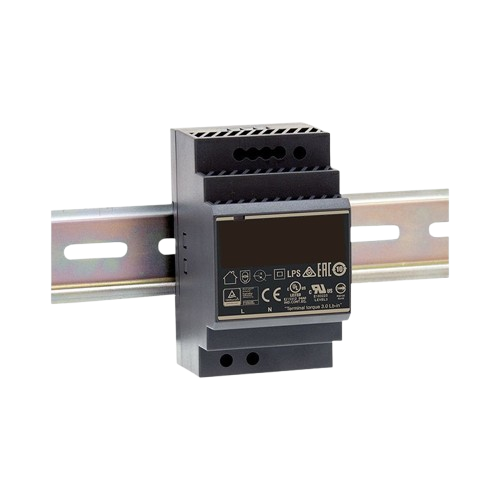

HDR-60-SPEC

Here’s a summary of the HDR‑60 (60 W, ultra‑slim DIN‑rail) power supply series by Mean Well, based on the official spec sheet:

📦 General Features

• Ultra-slim housing: 52.5 mm width (3PU) — ideal for tight cabinet space

• Wide AC input: 85–264 VAC (up to 277 VAC), or 120–370 VDC (up to 390 VDC)

• Very low idle power: < 0.3 W at no load

• Cooling: By free air convection; operating -30 °C to +70 °C

• Mounting: TS‑35/7.5 or TS‑35/15 DIN rail; LED power-on indicator; Class II isolation; Limited Power Source (LPS)

• Protections: short-circuit, overload (hiccup/constant-current limiting), and overvoltage with auto-reset

• Certifications: UL62368‑1, UL508, IEC/EN61558‑2‑16, IEC62368‑1, BS‑EN61558, EN55032, EN61000 immunity tests, etc.
