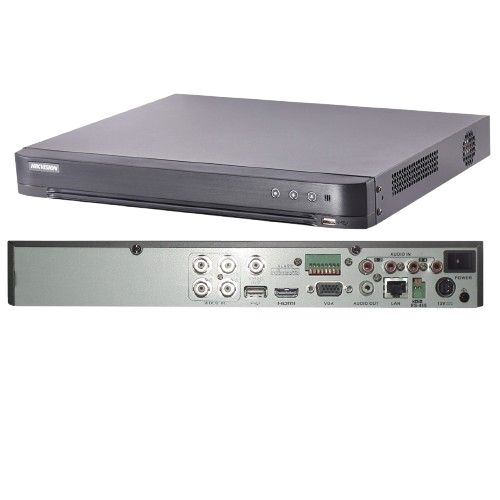

Hikvision 4 channel 8mp ( DS-7204HTHI-K1 )

Here’s a detailed overview of the Hikvision DS‑7204HTHI‑K1, a 4‑channel hybrid DVR supporting up to 8 MP recording:

Recording & Compression

• H.265 Pro+/Pro/H.265/H.264+/H.264 dual-stream compression

• Max encoding (main stream):

  • 8 MP @ 15 fps

  • 5 MP @ 20 fps

  • 3K @ 20 fps

  • 3 MP @ 18 fps

  • 4 MP / 1080p / 720p @ 25/30 fps

• Bitrate range: 32 Kbps–16 Mbps per channel

 Video & Audio I/O

• Analog inputs: 4 BNC, supporting HDTVI/AHD/CVI/CVBS up to 8 MP

• IP input: up to 4 channels standard; can increase to 8 IP channels

• Video outputs:

  • HDMI: up to 4K30 (3840×2160) and 2K60

  • VGA: up to 1080p60

  • CVBS analog output

• Audio: 4× RCA input (or via coax), 1× RCA output, 1× two-way audio

 Analytics & Bandwidth

• Supports perimeter protection: line-crossing and intrusion detection on all 4 channels

• Total network bandwidth: 128 Mbps

• Remote connections: up to 32 simultaneous users

• Network protocols: TCP/IP, DHCP, PPPoE, Hik‑Connect, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF

 Storage & Interface

• 1 SATA port, supports hard drives up to 10 TB

• Alarm I/O: 4 inputs, 1 output

• USB: front USB2.0 and rear USB3.0

• RS‑485 port available

 Power, Size & Durability

• Power: 12 V DC, 1.5 A, ≤15 W (no HDD)

• Dimensions: 315 × 242 × 45 mm; weight ≤1.5 kg (no HDD)

• Environmental range: –10 °C to +55 °C, 10%–90% RH
