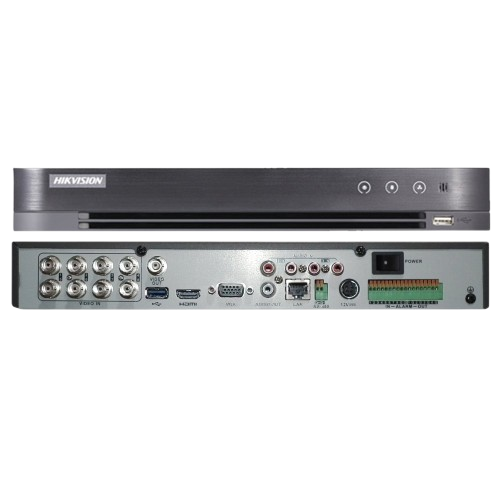

Hikvision 8 channel 5mp ( DS-7208HUHI-K1 )

Here’s a detailed overview of the Hikvision DS‑7208HUHI‑K1, a powerful 8‑channel hybrid DVR capable of 5 MP analog recording and IP camera integration:

 Recording & Compression

• Video formats: H.265 Pro+/H.265 Pro, H.265, H.264+, H.264 with dual-stream support

• Max encoding:

  • Analog HDTVI up to 8 MP @ 8 fps (channel 1) and 5 MP @ 12 fps (channels 1–8)

  • IP camera support up to 8 MP, total up to 16 IP channels .

• Bitrate: 32 Kbps – 10 Mbps per stream

• Playback: Synchronous playback of 8 analog channels, smart search included

 Inputs & Outputs

• Video inputs:

  • 8× analog BNC inputs (HDTVI/AHD/CVI/CVBS; coaxitron supported)

  • Up to 16 IP camera channels over network, up to 8 MP input resolution

• Audio:

  • 4× RCA audio-in; 1× RCA audio-out plus one-way talkback via channel 1 input

• Outputs:

  • 1× VGA (up to 1080p60), 1× HDMI (supports up to 4K30 / 2K60 output) .

  • 1× CVBS analog monitor output

 Network & Remote Access

• Ethernet: Single RJ45, auto-sensing (10/100/1000 Mbps) .

• Remote support: Up to 64 simultaneous connections

• Protocols: TCP/IP, DHCP, PPPoE, Hik‑Connect, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF
