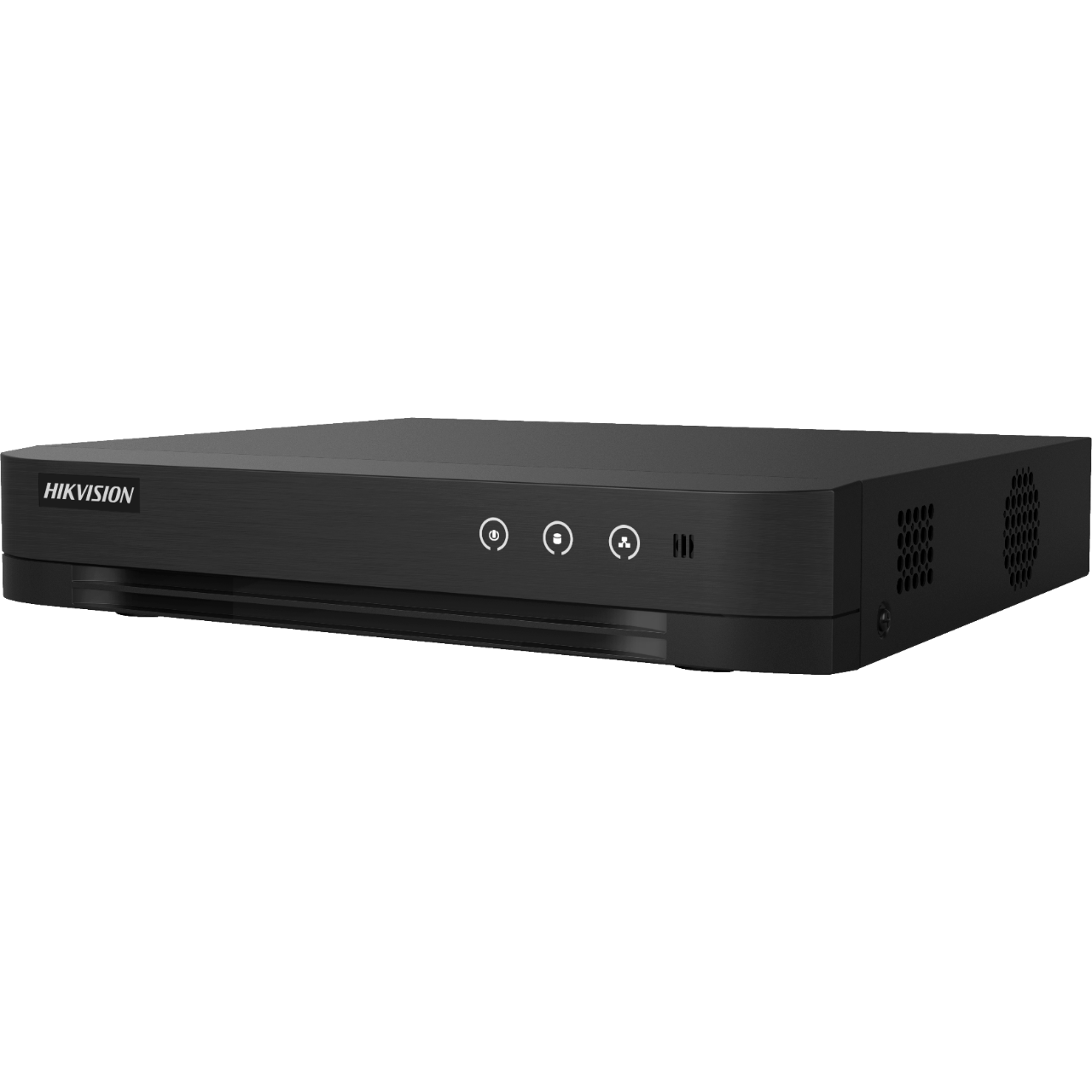

Hikvision 8 channel DVR 1080p ( DS‑7208HGHI‑K1 )

 Hikvision DS‑7208HGHI‑K1, an 8‑channel hybrid DVR

 Smart Detection & Analytics

• Motion Detection 2.0: Deep learning–based motion detection that can distinguish between human and vehicle targets on all analog channels—greatly reducing false alerts (e.g., from leaves or lighting). Supports quick search by object type.

 Video & Camera Inputs

• Analog: 8 BNC inputs supporting HDTVI/AHD/HDCVI/CVBS at up to 1080p (25/30 fps).

• IP Cameras: 2 IP channel inputs by default (expandable via hybrid mode to support up to 10 IP cameras, up to 5 MP resolution).

• Encoding: Records at up to 1080p Lite for all channels at 15 fps; sub-streams at CIF/QVGA @ 15 fps.

 Compression & Recording

• Video Formats: Supports H.265 Pro+/H.265 Pro/H.265/H.264+/H.264.

• Bitrate Range: Flexible 32 kbps to 4 Mbps per stream.

• Storage: Single SATA port, up to 4 TB HDD.

• Playback: Synchronous 8-channel playback with smart search features.

 Video & Audio Outputs

• Displays: Dual HDMI + VGA outputs (simultaneous), up to 1080p/60 Hz.

• Audio: 1 RCA line-in, 8-channel coaxial audio in, and 1 RCA line-out (G.711u, 64 kbps); supports bidirectional audio.

 Networking

• Connectivity: 1 × RJ45 10/100 Mbps; total network throughput: 72 Mbps.

• Remote Access: Supports up to 64 simultaneous connections; protocols include TCP/IP, DHCP, PPPoE, Hik‑Connect, DDNS, HTTPS, UPnP, NTP, SMTP.

 Power & Dimensions

• Power: 12 V DC, max consumption ≤17 W (without HDD).

• Size: Approx. 263 × 227 × 48 mm; weight ≤1 kg (no HDD).

• Operating Conditions: -10 °C to +55 °C; 10–90% RH.
