Hikvision  DS‑KD‑KP (KD8 Series Pro Modular Door Station )

Here’s what I found on the Hikvision DS‑KD‑KP:

    Overview

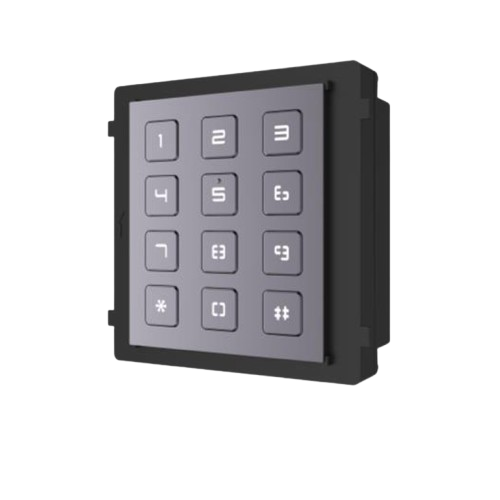

The DS‑KD‑KP is a numeric keypad module in Hikvision’s KD8 Series Pro Modular Door Station lineup. It’s designed to pair with the DS‑KD8003‑IME1 video intercom unit, adding coded entry and resident dialing capabilities.

    Key Features

• 12 physical buttons, used for PIN-based door unlocking and dialing room/resident numbers

• Built-in backlight compensation, ensuring button visibility under varying lighting conditions

• Rugged IP65 weatherproofing and IK07 vandal resistance, suitable for outdoor installation

• Powered by 12 VDC via the main module; power also passes to adjacent modules

• Low power usage, around 1 W
