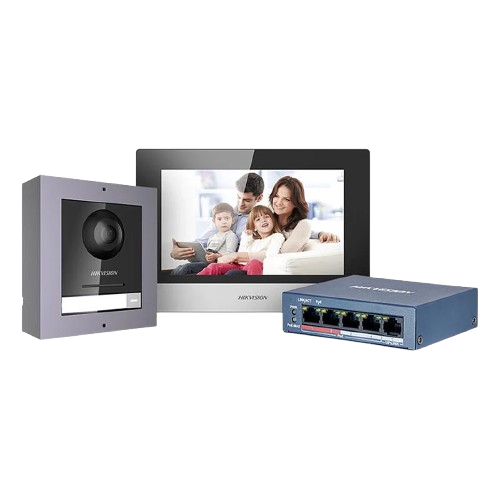

Hikvision DS‑KIS602(B) IP video intercom kit

Here’s a detailed overview of the Hikvision DS‑KIS602(B) IP video intercom kit:

  What’s Included

• Outdoor door station: DS‑KD8003‑IME1(B), surface-mounted, 2 MP HD camera, wide-angle lens, IR night vision, IP65-rated

• Indoor monitor: DS‑KH6320‑WTE1, 7″ capacitive touch-screen, Wi‑Fi + Ethernet, supports micro‑SD up to 32 GB

• PoE network switch (4-port) with up to 300 m long-range Ethernet support

  Key Specs

Door Station (DS‑KD8003‑IME1(B))

• 2 MP HD camera, 146° horizontal / 82° vertical view

• IR night vision (~3 m), WDR, digital noise reduction

• Two-way audio with echo cancellation; G.711 codec support

• Built‑in relays for lock control, alarm inputs, tamper switch

• Power via PoE (IEEE802.3af) or 12 VDC, ≤ 5 W operation; IP65 rated

Indoor Station (DS‑KH6320‑WTE1)

• 7″ 1024×600 TFT touch screen; built‑in mics and speakers, echo cancellation

• G.711, AAC, OPUS audio codecs; supports SIP, RTSP, ONVIF, IPv6

• Wired (10/100 Mbps) and Wi‑Fi (802.11 b/g/n) capable

• Micro‑SD support up to 32 GB; ≤ 6 W power; operating temperature –10 °C to +55 °C

PoE Switch

• 4 × PoE ports (IEEE 802.3af/at, up to 30 W each; 35 W total budget), 1 uplink port

• Metal housing, surge protection; supports long cable runs up to 300 m
