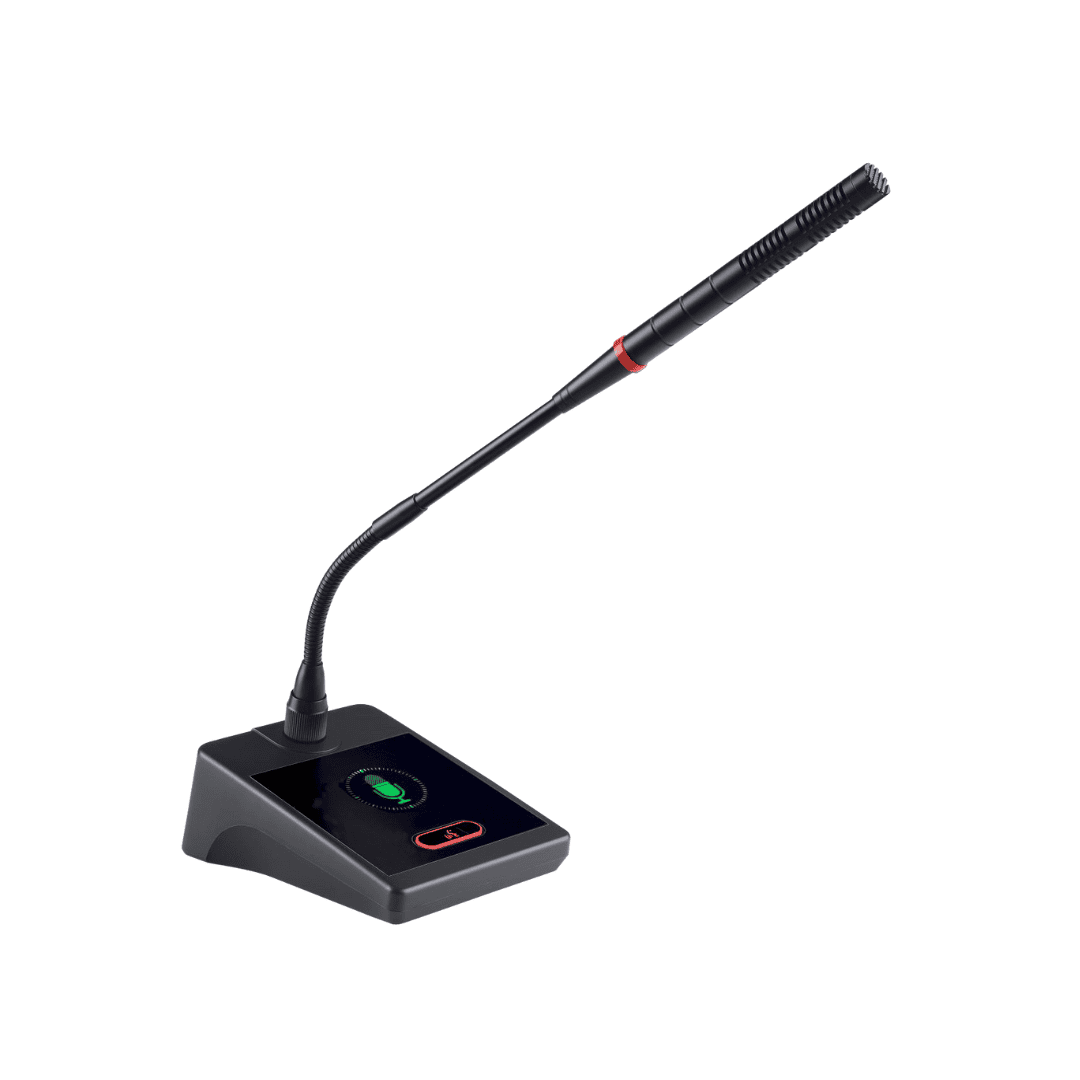

HM20

This microphone features a professional condenser capsule with excellent cardioid polar pattern, high sensitivity, and good frequency response. Its attractive design, flowing lines, and exquisite workmanship provide clear sound, making it ideal for conferences, radio, speeches, and assembly areas.

Capsule Type: Condenser

Frequency Response: 40Hz - 16kHz

Output Impedance: 2005Ω

Sensitivity: -40dB ±2dB

Polar Pattern: Ultra-cardioid

Reference Sound-Receiving Distance: 10-50cm

Power Supply: DC3V / Phantom 48V auto-switch

Indicator: Red

Ensure batteries are installed correctly using the "+" and "-" signs, and connect the audio output line.

Set the amplifier volume to "0." Turn on the amplifier and microphone, then adjust the volume slowly for optimal sound.

Best pickup effect is at a distance of 30cm from the microphone head.

Do not point the microphone head at speakers to avoid howling.

Avoid high volume settings to prevent feedback.

Remove batteries if not in use for a long time to prevent corrosion.
