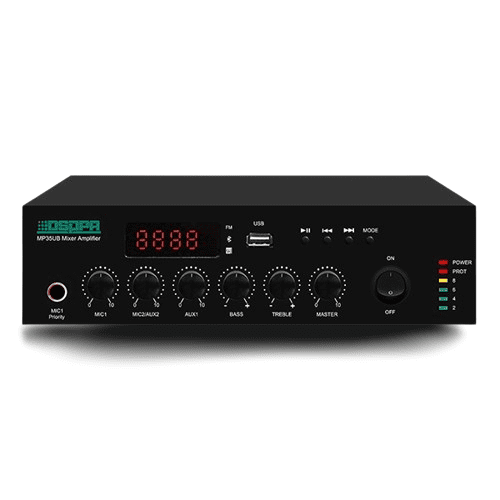

MP35UB - 35W - 1-Zone
MP35UB - 35W - 1-Zone
35W Mini Digital Mixer Amplifier
● 2 MIC inputs, 2 line inputs, 1 line output.
● Built-in Bluetooth, FM, and USB functions.
● 2 EMC inputs (100V/375mV), 1 EMC output.
● Can be controlled by the infrared remote controller.
● With the priority function, the priority is EMC/MIC1>AUX1/AUX2/MIC2.
● Support 100V/70V constant voltage output, and 4-16Ω constant resistance output.
● With master volume control, individual volume control for MIC & LINE, treble, and bass volume control.
|
Model |
MP35UB |
MP60UB |
MP120UB |
|
Power Supply |
~110-240 50/60Hz |
||
|
MIC1 Input Sensitivity |
5.5mV±1mV |
7mV±1mV |
|
|
MIC2 Input Sensitivity |
5.5mV±1mV |
7mV±1mV |
|
|
AUX1 Input Sensitivity |
350mV±10% |
300mV±10% |
|
|
AUX2 Input Sensitivity |
350mV±10% |
300mV±10% |
|
|
EMC Input Sensitivity |
350mV±10% |
||
|
MIC Frequency Response |
200Hz~10kHz (±3dB) |
100Hz~8kHz (±3dB) |
|
|
AUX Frequency Response |
100Hz~15kHz (±3dB) |
80Hz~15kHz (±3dB) |
|
|
Noise |
<5mV (4Ω load out) |
≤6mV (4Ω load out) |
|
|
Distortion |
<1% 1KHZ |
||
|
Treble Adjustment |
10dB (±2) |
||
|
Bass Adjustment |
10dB (±2) |
||
|
Rated Output Power |
35W |
60W |
120W |
|
Interface Output Mode |
70V, 100V (constant voltage output), 4-16Ω |
||
|
Power Consumption |
10W |
||
|
Machine Size (D×W×H) |
198×247×66mm |
||
|
Package Size |
302×343×121mm (1PC) |
||
|
Maximum Package Size |
355×630×283mm (4PCS) |
||
|
Net Weight |
2.55kg |
2.6kg |
3kg |
|
Gross Weight |
3.2kg (1PC) |
3.25kg (1PC) |
3.7kg (1PC) |
