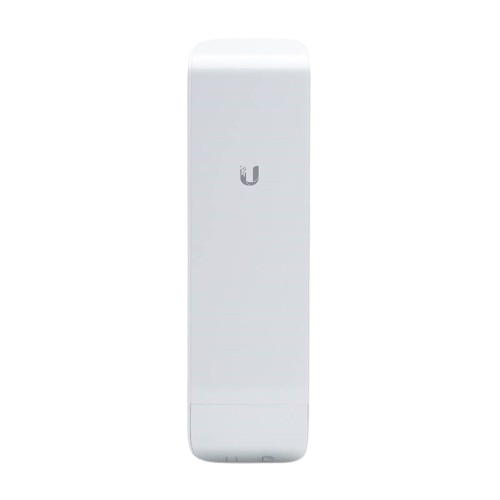

NANO STATION UNIFI M5 #1035

The Ubiquiti NanoStation M5 (NSM5) is a high-performance outdoor wireless device designed for point-to-point (PtP) and point-to-multipoint (PtMP) networking applications. It operates in the 5 GHz frequency band, providing reliable and scalable connectivity for various environments.

🔧 Key Features

• Frequency Range: 5.170–5.875 GHz

• Data Rate: Up to 150 Mbps real outdoor throughput

• Antenna Gain: 16 dBi dual-polarity integrated antenna

• Beamwidth: 43° horizontal, 41° vertical, 15° elevation

• Polarization: Dual linear

• Networking Interface: 2 x 10/100 Mbps RJ45 Ethernet ports

• Power Method: Passive PoE 2-pair (4, 5+; 7, 8 return)

• Power Supply: 24V, 0.5A PoE adapter (included)

• Max Power Consumption: 8W

• Operating Temperature: -30°C to 75°C (-22°F to 167°F)

• Mounting: Pole-mount kit included

• Dimensions: 294 x 31 x 80 mm (11.6 x 1.3 x 3.2")

• Weight: 400 g (14.1 oz)
