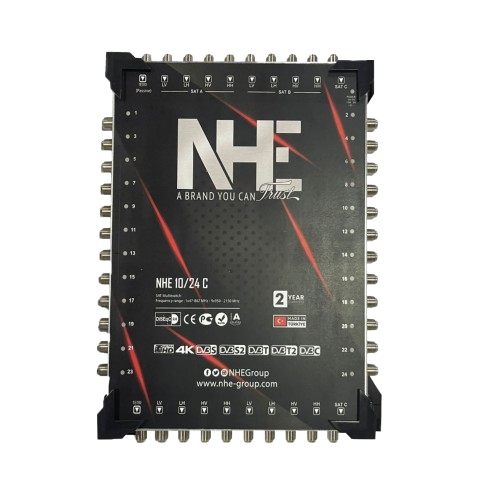

NHE Satellite Multiswitch 10X24

📡 Technical Specifications

• Inputs: 9 from satellite LNBs (2 quattro LNBs = 8 IF feeds) + 1 terrestrial input

• Frequency Range:

  • Satellite IF: 950–2150 MHz

  • Terrestrial: 47–862 MHz

• Per‑output Amplifier: Ensures uniform signal strength across all 24 ports

• Short‑Circuit Protection: On all outputs

• LNB On/Off Switch + LED indicators for voltage and operation status

• High Isolation between outputs and inputs, reducing interference

• Design:

  • Passive terrestrial path

  • Cascade-capable for expansion

  • Rugged housing; made in Turkey

🏗️ Applications

• Ideal for medium-to-large SMATV systems: residential buildings, hotels, villas.

• Supports various standards (DVB‑S/S2 and DVB‑T/T2 terrestrial).

• Works with single, quad, or quattro LNBs.

• Expandable through cascading for larger setups.
