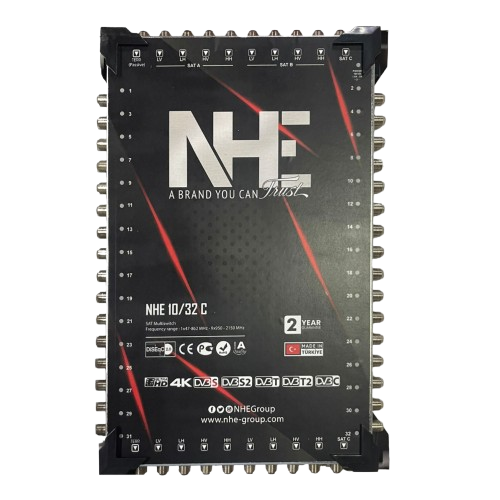

NHE Satellite Multiswitch 10X32

🔧 Model & Pricing

• Model: NHE Satellite Multiswitch 10x32

📡 Key Features

• Configuration: 9 satellite IF inputs (two Quattro LNBs = 8 polarities) + 1 terrestrial input → 32 subscriber outputs

• Frequency Range:

  • SAT IF: 950–2150 MHz

  • Terrestrial: 47–862 MHz

• Built-in Features:

  • Per-output amplifier ensures consistent signal levels across all 32 ports

  • Short‑circuit protection on every port

  • LNB on/off switch + LED indicators for voltage/status monitoring

  • High isolation between ports to prevent crosstalk

• Design:

  • Passive terrestrial path

  • Cascadable (can be connected in series for larger systems)

  • Rugged construction made in Turkey

✅ Typical Use Cases

• Perfect for medium-to-large SMATV installations: residential buildings, hotels, villas

• Supports DVB‑S2, DVB‑T/T2, and DVB‑C, ensuring compatibility with most free-to-air and cable broadcasts

• Supports multiple LNB types (Quattro, Quad, etc.)

• Easily expandable when connected in series with other multiswitches
