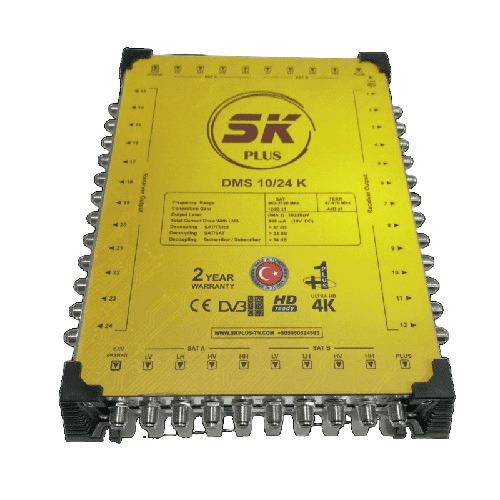

SK1024

Key Specs

• Inputs & Outputs:

  • Satellite: 4 inputs (supports up to two Quattro LNBs)

  • Terrestrial: 1 input (VHF/UHF)

  • Subscriber Outputs: 24 ports for TVs or receivers

• Frequency Ranges:

  • Satellite: 950–2250 MHz

  • Terrestrial: 47–862 MHz

• Insertion Loss / Connection Gain:

  • Satellite: +3 dB ± 2 dB

  • Terrestrial: 0–+2 dB insertion, +1 dB connection gain ± 2 dB

• Isolation & Decoupling:

  • Sat↔Terrestrial: >25 dB

  • Sat↔Sat (cross-polarization): >40 dB

  • Horizontal↔Vertical: >30 dB

  • Among subscriber outputs: >40 dB

• Max Output Level (Satellite): ~102 dBµV (IMA‑3 standard)

⚡ Power & Integration

• Power Options: External power supply included (typically 18 V DC).

• Use Case: Perfect for medium to large residential properties, apartment buildings, or small commercial setups requiring distribution to up to 24 recipients.

• Compatibility: Integrates smoothly with Quattro LNBs; terrestrial antenna signal is combined for convenient single-cable distribution.

✅ Highlights

• Distributes both satellite and terrestrial signals through a single, compact unit.

• Maintains strong signal quality across all outputs with high gain and low noise.

• Advanced isolation diminishes interference, enabling crystal-clear reception.
