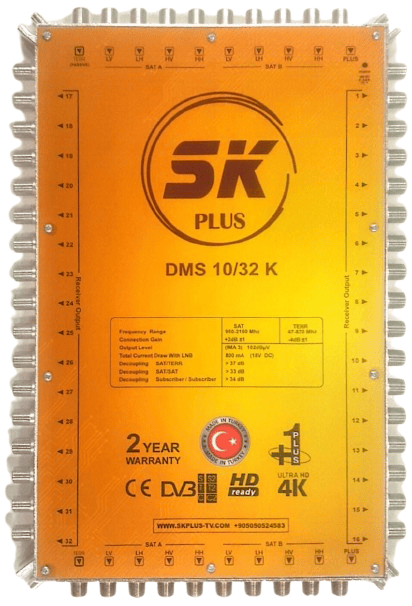

SK1032

Technical Highlights

• Configuration: 4 satellite inputs + terrestrial (VHF/UHF) → 32 subscriber outputs

• Frequency Coverage:

  • Satellite: 950–2250 MHz

  • Terrestrial: 47–862 MHz

• Insertion Loss & Connection Gain:

  • Satellite: +3 dB ±2 dB

  • Terrestrial: 0 to +2 dB insertion loss, +1 dB ±2 dB gain

• Isolation & Decoupling:

  • Satellite ↔ Terrestrial: >25 dB

  • Satellite ↔ Satellite (cross-polarization): >40 dB

  • Horizontal ↔ Vertical bands: >30 dB

  • Between subscriber lines: >40 dB

• Maximum Satellite Output: ~102 dBµV (compliant with IMA-3 standard)

⚡ Power & Integration

• Power Supply: Typically powered via cable (injector) or dedicated PSU—model may support cascade connection for distribution systems.

• Intended Use: Ideal for large homes, apartment buildings, hotels, or small commercial venues requiring up to 32 outputs.

• Compatibility: Works with standard 4-output Quattro LNBs; aggregates terrestrial antenna signals into the same output feeds.

✅ Key Advantages

• Delivers both satellite and terrestrial signals to a high number of endpoints.

• Maintains strong, consistent signal levels across all 32 outputs.

• Excellent isolation minimizes interference and crosstalk.
