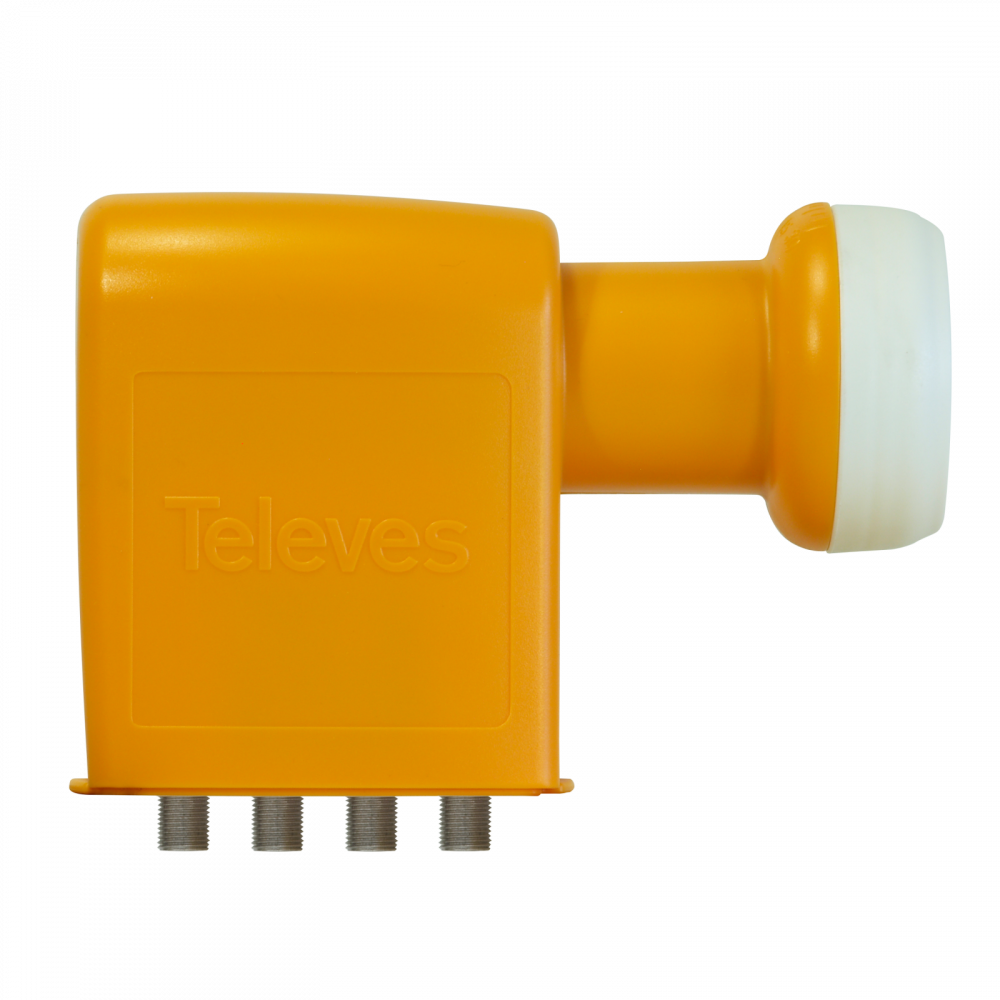

Televes Quad LNB Converter

 Televes Quad LNB (model 761001 / SPU44EN):

📡 Key Specifications

• Frequency Range: 10.7 – 12.75 GHz input, output 950 – 2150 MHz

• Local Oscillators: 9.75 GHz (low band), 10.6 GHz (high band)

• Gain: ~60 dB (typical)

• Noise Figure: 0.3 dB (typical)

• Outputs: 4 “universal” H/V outputs — supports up to four receivers directly

• Power Consumption: ~150 mA (max ~180–200 mA) from receiver or multiswitch

• Build & Durability: IP66/68 rated, weatherproof, operating −30 °C to +60 °C

• Dimensions & Mounting: 40 mm feed, approx. 149 × 113 × 65 mm, weighs ~316–390 g

🔍 Why It’s Recommended

• Excellent sensitivity and low noise, ideal for weak signal reception—noise figure of 0.3 dB is top-tier for a quad LNB

• High gain (60 dB) ensures strong signal levels for multiple receivers

• Reliable: Galaxus reviews speak highly — “problem‑free reception… extra‑long weather protection… simple installation”

• Rugged build: IP66/68 protection and tested across temperature extremes
