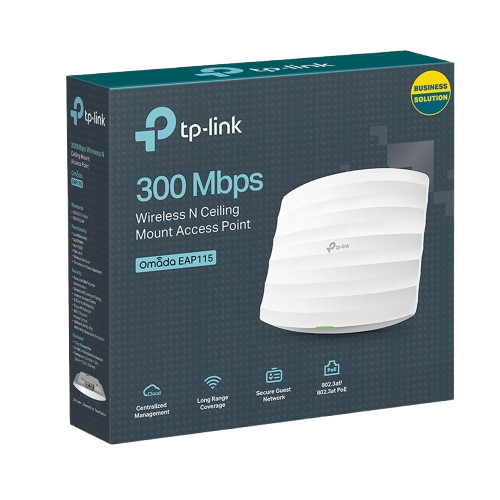

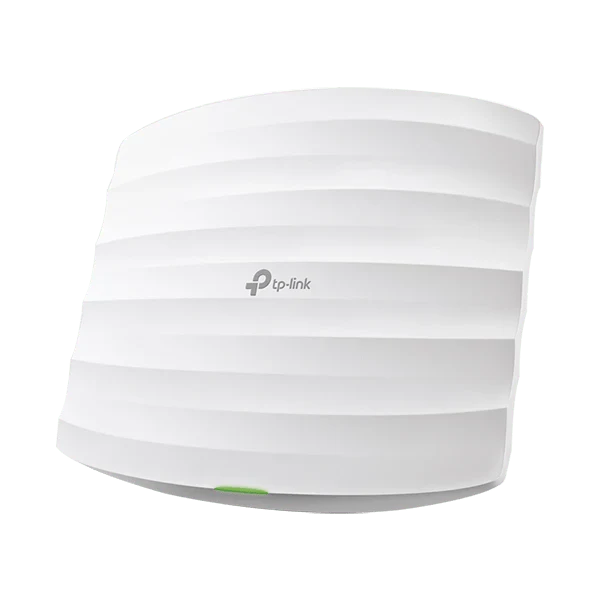

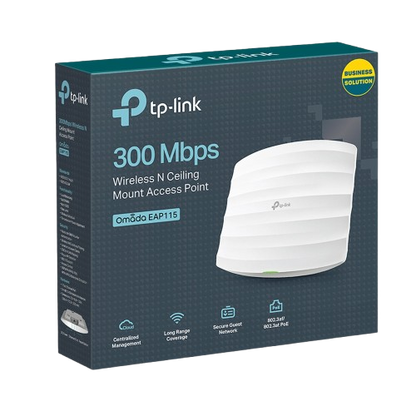

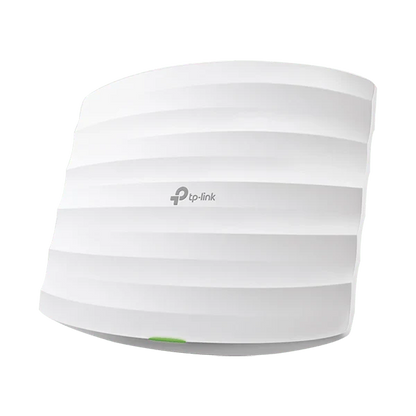

TP‑Link Omada EAP115
TP‑Link Omada EAP115
Here’s what I found regarding the TP‑Link Omada EAP115:
Overview
The Omada EAP115 (also called EAP115 Ceiling Mount AP) is a cost-effective 300 Mbps Wireless N access point, designed primarily for small–to–mid-size business deployments or guest networks. It supports IEEE 802.11b/g/n at 2.4 GHz with 2×2 MIMO, and includes built-in antennas for ceiling or wall-mount installations
Hardware Features
-
Interfaces: One Gigabit Ethernet RJ‑45 port supporting 802.3af PoE or an optional 9 V DC adapter. Max power consumption ~2.8 W
-
Form Factor: Slim, unobtrusive design (≈ 189 × 170 × 30 mm) suitable for ceiling or wall mounting; mounting hardware included
-
LED & Reset: Single system LED with status indications; reset button onboard
-
Security Slot: Kensington lock slot available for theft deterrence
Wireless & Network Features
-
Wireless Speed: Up to 300 Mbps via 2.4 GHz Wireless N. Compatible with clients using 802.11 b/g/n standards
-
SSID Support: Up to 8 SSIDs, VLAN tagging, client isolation, load balancing, rate limiting, and scheduling
-
Guest Authentication: Captive portal with support for SMS, Facebook Wi‑Fi, voucher-based or RADIUS login methods
-
Security Standards: WPA/WPA2‑PSK or Enterprise, WPA-PSK/WPA2‑Enterprise, 64/128-bit WEP legacy support, 802.1X, MAC filtering, rogue AP detection
