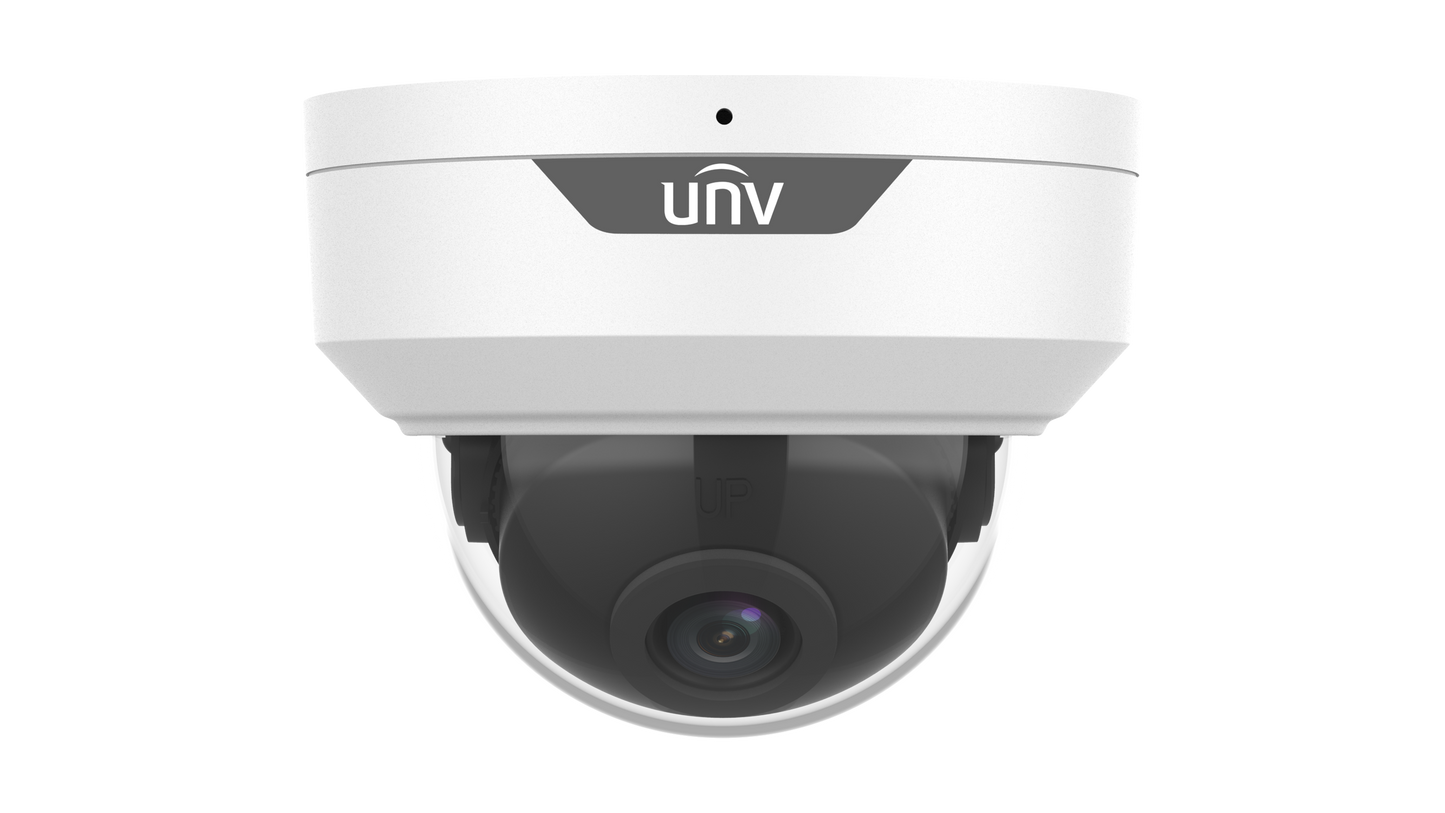

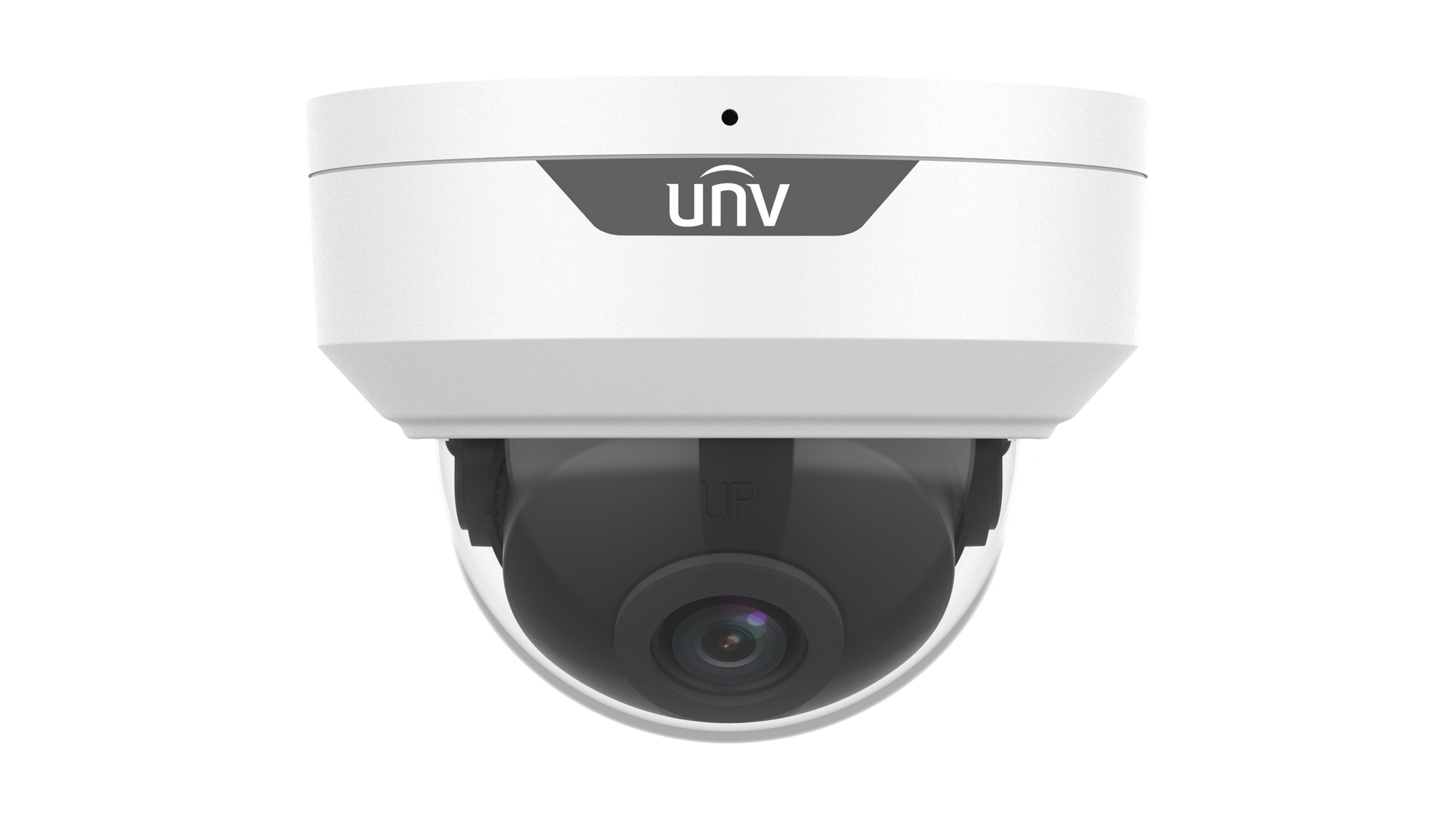

UNV IPC 5MP IP Dome Camera, Fixed , Mic #1489

Uniview IPC325LE-ADF28K-H Overview

Image & Lens

• Resolution: Delivers up to 5 MP footage—2880 × 1620 at 25/20 fps; supports multiple lower resolutions too .

• Sensor: 1/2.7″ progressive scan CMOS .

• Lens: Fixed-focus, 2.8 mm focal length (F1.6), offering a wide 110° horizontal field of view (diagonal ≈130°)

• Optional Variant: There is also a 4 mm version (ADF40K-H) with narrower field of view and longer detection range

Low-Light & Imaging Enhancements

• Minimum Illumination: As low as 0.003 Lux (F1.6, AGC ON); 0 Lux with IR illumination on

• Easystar Technology: Enhances performance under low-light conditions

• 120 dB True WDR: Ensures clarity in high-contrast lighting scenes .

• Smart IR: Infrared illumination up to 30 m (~98 ft), automatically adjustable .

Durability & Build

• Vandal-resistant: IK10-rated housing

• Weatherproof: IP67 rating for outdoor use

• Surge Protection: Up to 4 kV, enhancing resilience in extreme conditions

• Material & Size: Metal and plastic build; dimensions approx. Ø111 × 83 mm; weight ~0.35 kg

Video & Compression

• Compression: Supports Ultra265, H.265, H.264, MJPEG to optimize storage and bandwidth

• Video Streams: Dual-stream capability (main & sub) for simultaneous high-quality recording and remote viewing

• nalytics

• Corridor Mode (9:16): Ideal for hallways and vertically oriented areas

• Frame Rates:

  • Main stream: up to 25 fps at 5 MP; up to 30 fps at 3 MP or 1080p

  • Sub stream: 720p or D1, up to 30 fps

Smart Features & A

• Embedded Detection: Includes cross-line, intrusion (human-centric), motion, ultra-motion, tampering, and audio detection

• Image Enhancement Tools: 2D/3D DNR, BLC, HLC, defog, ROI, privacy masks, OSD overlays

Audio & Storage

• Built-in Mic: Captures audio; compression via G.711U / G.711A at 64 kbps

• Storage Options:

  • MicroSD card slot—supports up to 256 GB (some sources cite up to 512 GB, depending on firmware/region)

  • Network storage: Supports ANR and NAS via NFS

Summary Table: IPC325LE-ADF28K-H Specs
