ZigBee Dimmer Switch

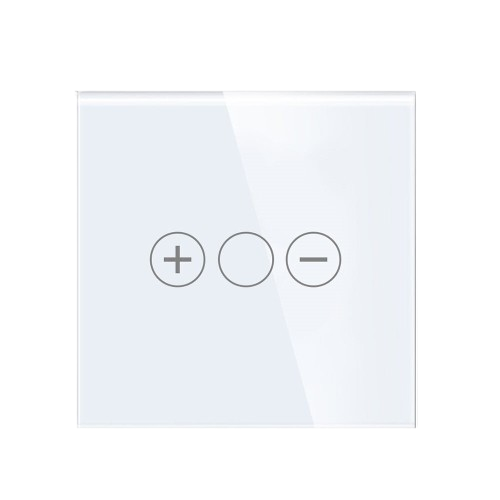

ZigBee Touch Dimmer Switch

• Installation: Directly replaces standard dimmer switches; no extra neutral line needed.

• Capacitor Requirement: Additional capacitor required for parallel wiring with LED lights for stable operation.
• Power Consumption: Standby power consumption less than 0.2W.
• Control Method: 3 touch buttons:
  • Middle Button: Turn on/off
  • "+" Button: Increase brightness
  • "-" Button: Decrease brightness
• Panel Material: Tempered glass, size 86x86mm, thickness 4mm.
• Design Features: Glossy finish with chamfered edges; modern and elegant appearance.
• Durability: Waterproof, explosion-proof, and scratch-proof.
• Touch Module: Fire-retardant polycarbonate shell, size 50x50mm, depth 25mm.
• Voltage: 110V-240V AC, 50/60Hz.
• Load Capacity: 3-700W per gang.
• Operating Conditions: Temperature: -20℃ to 70℃, Humidity: 10% to 93%.
• Quality Assurance: Uses Toshiba chips, with quality checks for each batch; complies with EU CE standards.
• Environmental Commitment: Eco-friendly packaging and patented design and technology.
